Beat Saber: Black screen and XID errors

protonclosed appid 620980Game compatibilityNVIDIA drivers
ValveSoftware/Proton#2030 · opened 2018-11-25 by ali1234 · updated 2023-01-26 · 12 comments · github · game page · search this game
Aali1234 2018-11-25 github

Compatibility Report

  • Name of the game with compatibility issues: Beat Saber
  • Steam AppID of the game: 620980

System Information

I confirm:

  • [x] that I haven't found an existing compatibility report for this game.
  • [x] that I have checked whether there are updates for my system available.

Symptoms

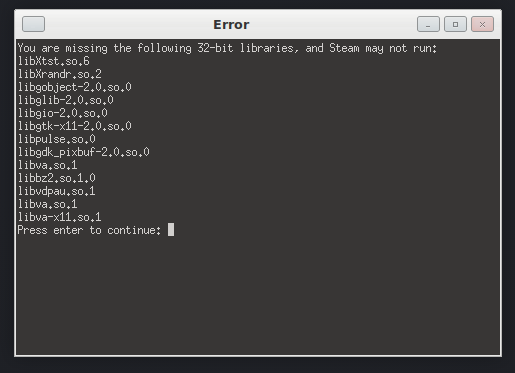

When running the game, first this pops up:

screenshot_2018-11-25_16-35-00

After pressing enter the screen goes black, and nothing more happens.

Then on dmesg I see this

[1133120.640829] NVRM: Xid (PCI:0000:01:00): 13, Graphics Exception: Shader Program Header 9 Error
[1133120.640833] NVRM: Xid (PCI:0000:01:00): 13, Graphics Exception: ESR 0x405840=0x82000200
[1133120.640843] NVRM: Xid (PCI:0000:01:00): 13, Graphics Exception: ChID 007a, Class 0000a197, Offset 00001a2c, Data 00000000
[1133285.439260] vrcompositor[16288]: segfault at 0 ip 00007fb2a7bac5d7 sp 00007ffe9567eff0 error 4 in libnvidia-glcore.so.396.54.09[7fb2a6ace000+10e9000]

Log: steam-620980.log

Reproduction

Just run it.

Aali1234 2018-11-25 github

PS I forgot to mention that lots of other VR games work fine.

WWaddlen 2018-11-29 github

Do you have those 32-bit libraries installed?

For example, sudo apt install libxtst6:i386 and sudo apt install libxrandr2:i386

You can find their package names by using the Ubuntu package search

Note that because you are using a 64-bit OS, you will need to append :i386 to the end of the package name, to indicate you wish to install the 32-bit version.

Aali1234 2018-11-29 github

libva.so.1 and libva-x11.so.1 are not available.

WWaddlen 2018-11-29 github

Try sudo apt install libva2:i386 libva-x11-2:i386

Aali1234 2018-11-29 github

After installing 32 bit libraries that error message is no longer displayed. However there is no change in the behavior of the game. It still displays nothing but a black screen and causes XID errors on dmesg.

WWaddlen 2018-11-29 github

I believe the dmesg points to an error within the Nvidia driver. How did you install your drivers? Did you use the official Ubuntu ppa (or here for 396.54.09)?
Perhaps reinstalling the Nvidia drivers and rebooting will clear up your issues, I don't think libva.so.1 and libva-x11.so.1 would have been missing if the Nvidia driver had been installed correctly.

Aali1234 2018-11-29 github

libva.so.1 and libva-x11.so.1 are missing because they are not available in Ubuntu.

libva2:i386 and libva-x11-2:i386 installs libva.so.2 and libva-x11.so.2 respectively. These are different ABI versions and are not compatible.

It turns out the 32 bit error only appears after running beat saber one time. It still displays the error, but now it only lists libva as missing, because I installed all the others. And what's more, after running beat saber, every game on steam displays this error. Despite this they all work fine.

This isn't an installation error. I installed from the Xorg team PPA. Reinstalling won't make any difference because apt guarantees that the same files will be installed in the same place. And I have rebooted many times - I have to reboot about 50% of the time when I run beat saber because the whole computer freezes on a black screen. Sometimes I can switch to a terminal and kill it. Other times all the monitors turn off and the computer is completely unresponsive.

This is only a problem with beat saber. It does not happen with any of the other 200+ games in my library, many of which are VR, nor when I run intensive CUDA applications such as Blender.

WWaddlen 2018-11-29 github

Okay, I'm not sure what the issue is then. Beat Saber works on my Ubuntu 18.04 / Ryzen 1700 / GTX 1080 396.54.09 system. Good luck finding the solution.

Aali1234 2018-11-29 github

btw in addition to the versions in the initial report, I have tested beat saber with several versions of proton since the initial release as well as multiple nvidia driver versions - the default for Ubuntu 18.04, 396.54, and 396.54.09 and it has never worked with any of them. Always the exact same result.

JJulianGro 2019-06-01 github

No idea if this is related the same bug, but me and another user had problems with XID errors and nvidia fixed them: https://devtalk.nvidia.com/default/topic/1051300/linux/inconsistent-but-frequent-freeze-caused-by-steamvr/3

Kkisak-valve maintainer 2023-01-26 github

Hello @ali1234, are you still experiencing this issue on an up to date system? This reads like it was a video driver issue.

Aali1234 2023-01-26 github

To be honest I haven't tried it since my last comment and I don't even have the same GPU any more. I just did a quick test (without headset plugged in) and it seemed to load up okay. This can be closed.
