even with vsync enabled ingame?

Both games enable vsync unconditionally and you can tell from the d3d11.log that the fifo present mode is used.

and your sure triple buffering is enabled also? sometimes desktops need special environment settings for it.

Vsync works fine with every game with 4.2, native titles and standalone wine on my setup, but not with 4.11. It also works when rendering resolution == output resolution on 4.11.

Yeah well I wouldn't be surprised, I've had a few issues with freezes or crashing in 4.11 myself, but I can't really report it atm because I don't have the correct cooler on my GPU so it gets quite hot.

Waiting on parts to turn up...

I've identified 6bf75252 winex11.drv: Report real display modes in the fs hack as the commit which introduces the issue. Replacing winex11.drv.so and fakedlls/winex11.drv with a version with this commit reverted fixes the issue.

@Oschowa Thanks a lot for digging into it. If you don't mind going a little further, I have two things to ask. First would be to gather a log of normal Proton 4.11-1 with +x11settings added to the WINEDEBUG log. Second would be to try building current 4.11, and adding a quick hack to set freq = 60 at the start of X11DRV_Settings_AddOneMode. Like this:

diff --git a/dlls/winex11.drv/settings.c b/dlls/winex11.drv/settings.c
index df8ad17d255..f41d9421daa 100644
--- a/dlls/winex11.drv/settings.c
+++ b/dlls/winex11.drv/settings.c
@@ -97,6 +97,8 @@ BOOL X11DRV_Settings_AddOneMode(unsigned int width, unsigned int height, unsigne
     }
     if (bpp == 0) bpp = dwBpp;

+    freq = 60;
+
     for(i = 0; i < dd_mode_count; ++i)
     {
         if(dd_modes[i].width == width &&

hopefully freq = 60; isn't an official fix idea because it needs to detect the resolutions sync rate properly.

Of course not. Like I said, it's a quick hack :) My theory is that our rounding when converting the dot clock rate that X11 reports, to the Windows FPS value, is causing the mode to report 59 FPS to the game, and causing tearing. If that is true (the log will tell) and hacking it to 60 fixes it, then I'll look at how we are doing our rounding and how it can be changed to round to 60 instead of 59.

Thanks for looking into it.

Log of unmodified 4.11 with +x11settings:
steam-814380 unmodified.log

Unfortunately, the freq = 60; hack does not work around the problem, here is a log with it applied:
steam-814380.log

Hum, rats. While you're at it, could you also grab a log of a successful run on 4.2-9?

@Oschowa I found a bug that seems unrelated, but I can't find any other difference between your good and bad logs. Can you try out this diff (without the freq=60 change)?

diff --git a/dlls/winex11.drv/settings.c b/dlls/winex11.drv/settings.c
index df8ad17d255..973711574d8 100644
--- a/dlls/winex11.drv/settings.c
+++ b/dlls/winex11.drv/settings.c
@@ -191,6 +191,7 @@ void X11DRV_Settings_AddDepthModes(void)

     qsort(dd_modes, dd_mode_count, sizeof(*dd_modes), sort_display_modes);

+    existing_modes = dd_mode_count;
     for (j=0; j<3; j++)
     {
         if (depths[j] != dwBpp)

This seems to have fixed it, thank you very much!

@aeikum Turns out, i'm an idiot and still had 4.2-9 enabled when trying out the patch, and it does not fix the issue after all... Sorry for the confusion.

edit: I made 100% sure reverting 6bf75252 actually fixes it though.

aww...

(excitement deflated)

Did some more digging and discovered, that the sorting of modes is what actually is causing the problem. The following hack ontop of 4.11-1 fixes it for me:

diff --git a/dlls/winex11.drv/settings.c b/dlls/winex11.drv/settings.c
index df8ad17d25..57863cfe02 100644
--- a/dlls/winex11.drv/settings.c
+++ b/dlls/winex11.drv/settings.c
@@ -189,7 +189,7 @@ void X11DRV_Settings_AddDepthModes(void)
             X11DRV_Settings_AddOneMode(fs_modes[i].w, fs_modes[i].h, 0, dd_modes[realMode].refresh_rate);
     }

-    qsort(dd_modes, dd_mode_count, sizeof(*dd_modes), sort_display_modes);
+    //qsort(dd_modes, dd_mode_count, sizeof(*dd_modes), sort_display_modes);

     for (j=0; j<3; j++)
     {

I also printed out the modes before and after sort and this is the result:

0028:trace:x11settings:trace_modes trace modes after sort? 0
0028:trace:x11settings:trace_modes trace modes 0: 3840x2160@60
0028:trace:x11settings:trace_modes trace modes 1: 4096x2160@60
0028:trace:x11settings:trace_modes trace modes 2: 1920x1200@60
0028:trace:x11settings:trace_modes trace modes 3: 1920x1080@60
0028:trace:x11settings:trace_modes trace modes 4: 1600x1200@60
0028:trace:x11settings:trace_modes trace modes 5: 1680x1050@60
0028:trace:x11settings:trace_modes trace modes 6: 1280x1024@60
0028:trace:x11settings:trace_modes trace modes 7: 1440x900@60
0028:trace:x11settings:trace_modes trace modes 8: 1280x960@60
0028:trace:x11settings:trace_modes trace modes 9: 1280x800@60
0028:trace:x11settings:trace_modes trace modes 10: 1280x720@60
0028:trace:x11settings:trace_modes trace modes 11: 1024x768@60
0028:trace:x11settings:trace_modes trace modes 12: 800x600@60
0028:trace:x11settings:trace_modes trace modes 13: 720x576@60
0028:trace:x11settings:trace_modes trace modes 14: 720x480@60
0028:trace:x11settings:trace_modes trace modes 15: 640x480@60
0028:trace:x11settings:trace_modes trace modes 16: 960x540@60
0028:trace:x11settings:trace_modes trace modes 17: 1600x900@60
0028:trace:x11settings:trace_modes trace modes 18: 2560x1440@60
0028:trace:x11settings:trace_modes trace modes 19: 2560x1600@60
0028:trace:x11settings:trace_modes trace modes 20: 1440x960@60
0028:trace:x11settings:trace_modes trace modes 21: 1920x1280@60
0028:trace:x11settings:trace_modes trace modes 22: 2560x1080@60
0028:trace:x11settings:trace_modes trace modes 23: 1920x800@60
0028:trace:x11settings:trace_modes trace modes 24: 3840x1600@60

0028:trace:x11settings:trace_modes trace modes after sort? 1
0028:trace:x11settings:trace_modes trace modes 0: 4096x2160@60
0028:trace:x11settings:trace_modes trace modes 1: 3840x2160@60
0028:trace:x11settings:trace_modes trace modes 2: 3840x1600@60
0028:trace:x11settings:trace_modes trace modes 3: 2560x1600@60
0028:trace:x11settings:trace_modes trace modes 4: 2560x1440@60
0028:trace:x11settings:trace_modes trace modes 5: 2560x1080@60
0028:trace:x11settings:trace_modes trace modes 6: 1920x1280@60
0028:trace:x11settings:trace_modes trace modes 7: 1920x1200@60
0028:trace:x11settings:trace_modes trace modes 8: 1920x1080@60
0028:trace:x11settings:trace_modes trace modes 9: 1920x800@60
0028:trace:x11settings:trace_modes trace modes 10: 1680x1050@60
0028:trace:x11settings:trace_modes trace modes 11: 1600x1200@60
0028:trace:x11settings:trace_modes trace modes 12: 1600x900@60
0028:trace:x11settings:trace_modes trace modes 13: 1440x960@60
0028:trace:x11settings:trace_modes trace modes 14: 1440x900@60
0028:trace:x11settings:trace_modes trace modes 15: 1280x1024@60
0028:trace:x11settings:trace_modes trace modes 16: 1280x960@60
0028:trace:x11settings:trace_modes trace modes 17: 1280x800@60
0028:trace:x11settings:trace_modes trace modes 18: 1280x720@60
0028:trace:x11settings:trace_modes trace modes 19: 1024x768@60
0028:trace:x11settings:trace_modes trace modes 20: 960x540@60
0028:trace:x11settings:trace_modes trace modes 21: 800x600@60
0028:trace:x11settings:trace_modes trace modes 22: 720x576@60
0028:trace:x11settings:trace_modes trace modes 23: 720x480@60
0028:trace:x11settings:trace_modes trace modes 24: 640x480@60

So it seems like the somewhat bogus 4096x2160@60 mode my screen claims to support getting enumerated before the primary 3840x2160@60 modes is causing the issue.

I wrote a PoC patch which always enumerates the primary mode first, which also solves the issue:
fshack_primary_mode_first.txt

@Oschowa That's really great work. I'll go run a quick test on Windows to see what happens there. I thought it sorted as I implemented, but I guess there's something else going on.

@jarrard As of 4.11-1, Proton should report both all of the native display resolutions as well as a list of common "backup" resolutions that your display might not support directly. If your display reports that resolution (e.g. it's in the output of xrandr), I'd expect it to be reported in Proton. It's possible your game is filtering that mode out, or, maybe you're hitting one of these bugs we're working on. I'd suggest trying again in 4.11-2 after we've stamped these bugs out.

@Oschowa On Windows, it appears to be enumerated in the reverse order of how I implemented it. In other words, first sort order is width smallest to biggest, then height smallest to biggest. There did not seem to be any sorting by frequency, and it did not report any bit depths other than 32. Changing the current mode made no difference to the sort order (although the current mode is not the same as the "preferred mode", which is also the largest and so listed last). This was on an integrated Intel GPU.

Can you try this diff on top of 4.11-1? It reverses the sort order, and fixes the mode count bug.

diff --git a/dlls/winex11.drv/settings.c b/dlls/winex11.drv/settings.c
index df8ad17d255..91e884fe1d7 100644
--- a/dlls/winex11.drv/settings.c
+++ b/dlls/winex11.drv/settings.c
@@ -150,17 +150,16 @@ static int sort_display_modes(const void *l, const void *r)
 {
     const struct x11drv_mode_info *left = l, *right = r;

-    /* largest first */
-    if(left->width < right->width)
+    if(left->width > right->width)
         return 1;

-    if(left->width > right->width)
+    if(left->width < right->width)
         return -1;

-    if(left->height < right->height)
+    if(left->height > right->height)
         return 1;

-    if(left->height > right->height)
+    if(left->height < right->height)
         return -1;

     return 0;
@@ -191,6 +190,7 @@ void X11DRV_Settings_AddDepthModes(void)

     qsort(dd_modes, dd_mode_count, sizeof(*dd_modes), sort_display_modes);

+    existing_modes = dd_mode_count;
     for (j=0; j<3; j++)
     {
         if (depths[j] != dwBpp)

As of 4.11-1, Proton should report both all of the native display

Yes this is probably true, however it requires me to make a custom EDID since nvidia drivers have no way of inserting custom resolutions under linux as they do under Windows.
Huge bucket loads of features missing for NVIDIA Linux drivers which is real unfortunate, hopefully AMD can make top end cards again soon.

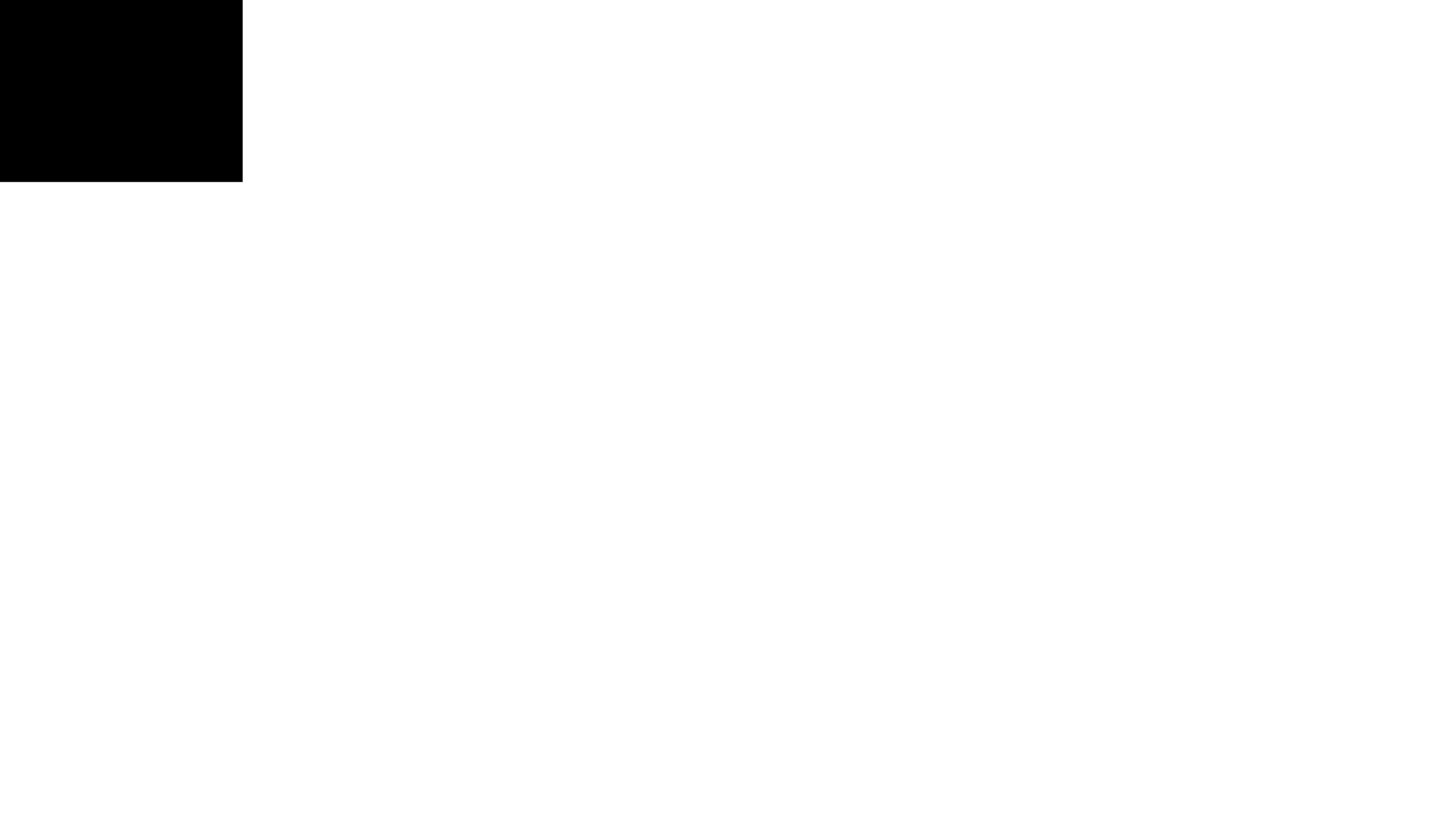

@aeikum Sadly, the new sorting order breaks the fshack completely for me. I get a window which looks like this (the game eventually renders something distored in the black square):

The resulting mode order is

0028:trace:x11settings:trace_modes trace modes 0: 640x480@60
0028:trace:x11settings:trace_modes trace modes 1: 720x480@60
0028:trace:x11settings:trace_modes trace modes 2: 720x576@60
0028:trace:x11settings:trace_modes trace modes 3: 800x600@60
0028:trace:x11settings:trace_modes trace modes 4: 960x540@60
0028:trace:x11settings:trace_modes trace modes 5: 1024x768@60
0028:trace:x11settings:trace_modes trace modes 6: 1280x720@60
0028:trace:x11settings:trace_modes trace modes 7: 1280x800@60
0028:trace:x11settings:trace_modes trace modes 8: 1280x960@60
0028:trace:x11settings:trace_modes trace modes 9: 1280x1024@60
0028:trace:x11settings:trace_modes trace modes 10: 1440x900@60
0028:trace:x11settings:trace_modes trace modes 11: 1440x960@60
0028:trace:x11settings:trace_modes trace modes 12: 1600x900@60
0028:trace:x11settings:trace_modes trace modes 13: 1600x1200@60
0028:trace:x11settings:trace_modes trace modes 14: 1680x1050@60
0028:trace:x11settings:trace_modes trace modes 15: 1920x800@60
0028:trace:x11settings:trace_modes trace modes 16: 1920x1080@60
0028:trace:x11settings:trace_modes trace modes 17: 1920x1200@60
0028:trace:x11settings:trace_modes trace modes 18: 1920x1280@60
0028:trace:x11settings:trace_modes trace modes 19: 2560x1080@60
0028:trace:x11settings:trace_modes trace modes 20: 2560x1440@60
0028:trace:x11settings:trace_modes trace modes 21: 2560x1600@60
0028:trace:x11settings:trace_modes trace modes 22: 3840x1600@60
0028:trace:x11settings:trace_modes trace modes 23: 3840x2160@60
0028:trace:x11settings:trace_modes trace modes 24: 4096x2160@60

Probably not useful but a log of this run with +x11settings
steam-814380.log

Oh shoot, I see the problem. It also explains why moving your real mode to index 0 helped. Try this diff. I suspect it will fix your problem with or without the sorting method change.

@@ -419,8 +419,8 @@ static LONG X11DRV_nores_SetCurrentMode(int mode)
         fs_hack_real_to_user_h = dd_modes[currentMode].height / (double)h;

         X11DRV_resize_desktop(
-                DisplayWidth(gdi_display, default_visual.screen) - (dd_modes[0].width - w),
-                DisplayHeight(gdi_display, default_visual.screen) - (dd_modes[0].height - h));
+                DisplayWidth(gdi_display, default_visual.screen) - (dd_modes[realMode].width - w),
+                DisplayHeight(gdi_display, default_visual.screen) - (dd_modes[realMode].height - h));
     }

     return DISP_CHANGE_SUCCESSFUL;
@@ -435,8 +435,8 @@ POINT fs_hack_current_mode(void)

 POINT fs_hack_real_mode(void)
 {
-    POINT ret = { dd_modes[0].width,
-        dd_modes[0].height };
+    POINT ret = { dd_modes[realMode].width,
+        dd_modes[realMode].height };
     return ret;
 }

Indeed, with or without the sorting changes, the latest patch fixes the issue.
Thanks agian, I very much appreciate the fshack and all the Proton/Wine work in general.

Sure, and thanks to you for all the diagnosis and testing you did. Glad we got it fixed! Will be in the next build.

@aeikum I'm not sure why but that diff that is supposed to fix refreshrate sorting order doesn't actually fix it.

The fix for screen tearing is included in 4.11-2. Please retest and confirm it's fixed!

I can confirm that 4.11-2 fixes the tearing.
