Chilla's Art games graphics errors (1306620 1228520 1349960)

protonclosed Game compatibility - UnofficialMesa drivers
ValveSoftware/Proton#4167 · opened 2020-09-01 by AwesamLinux · updated 2020-10-19 · 5 comments · github
AAwesamLinux 2020-09-01 github

Chilla's Art latest games have black graphics artifacts when SSR (ScreenSpaceReflections) is enabled

Affected games are:
Missing Children (1306620)
The Convenience Store (1228520)
The Ghost Train (1349960)

System Information

  • GPU: RX 5700
  • GPU Driver: Mesa 20.3.0-devel (git-1459cce 2020-09-01 focal-oibaf-ppa)
  • Kernel version: 5.9.0-050900rc3-lowlatency
  • Distro version: Mint 20 (64 bit) (Cinnamon)
  • Proton version: 5.0-9

I confirm:

  • [x] that I haven't found an existing compatibility report for this game.
  • [x] that I have checked whether there are updates for my system available.

Symptoms

When SSR (ScreenSpaceReflections) are enabled, there are graphical artifacts when in some specific indoors areas.

  • Tested different Mesa drivers: Mesa 20.0.8, Mesa 20.1.6, Mesa 20.3.0-devel
  • Tried with both ACO and LLVM
  • Tried Proton versions 3.16-9, 4.2-9, 5.0-9, 5.0-10-rc4 amd also unofficial 5.11-GE-3-MF

Reproduction

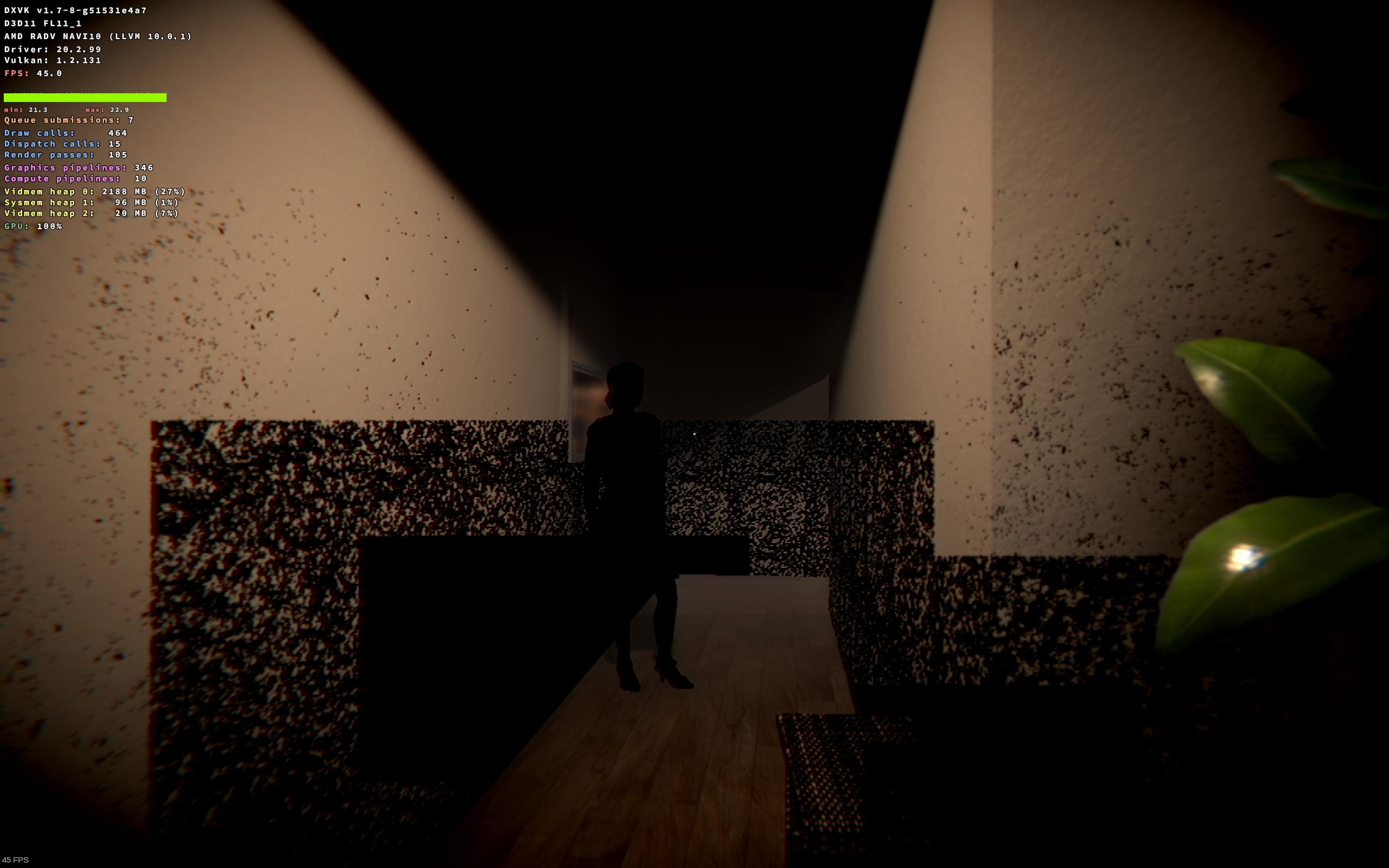

Steps to re-produce issue in Missing Children:

  • Enable SSR in games options
  • use the flashlight, and you will see glitches when entering Mizukis house. You can also see glitches in the Akikos house kitchen when using the flashlight.
    children

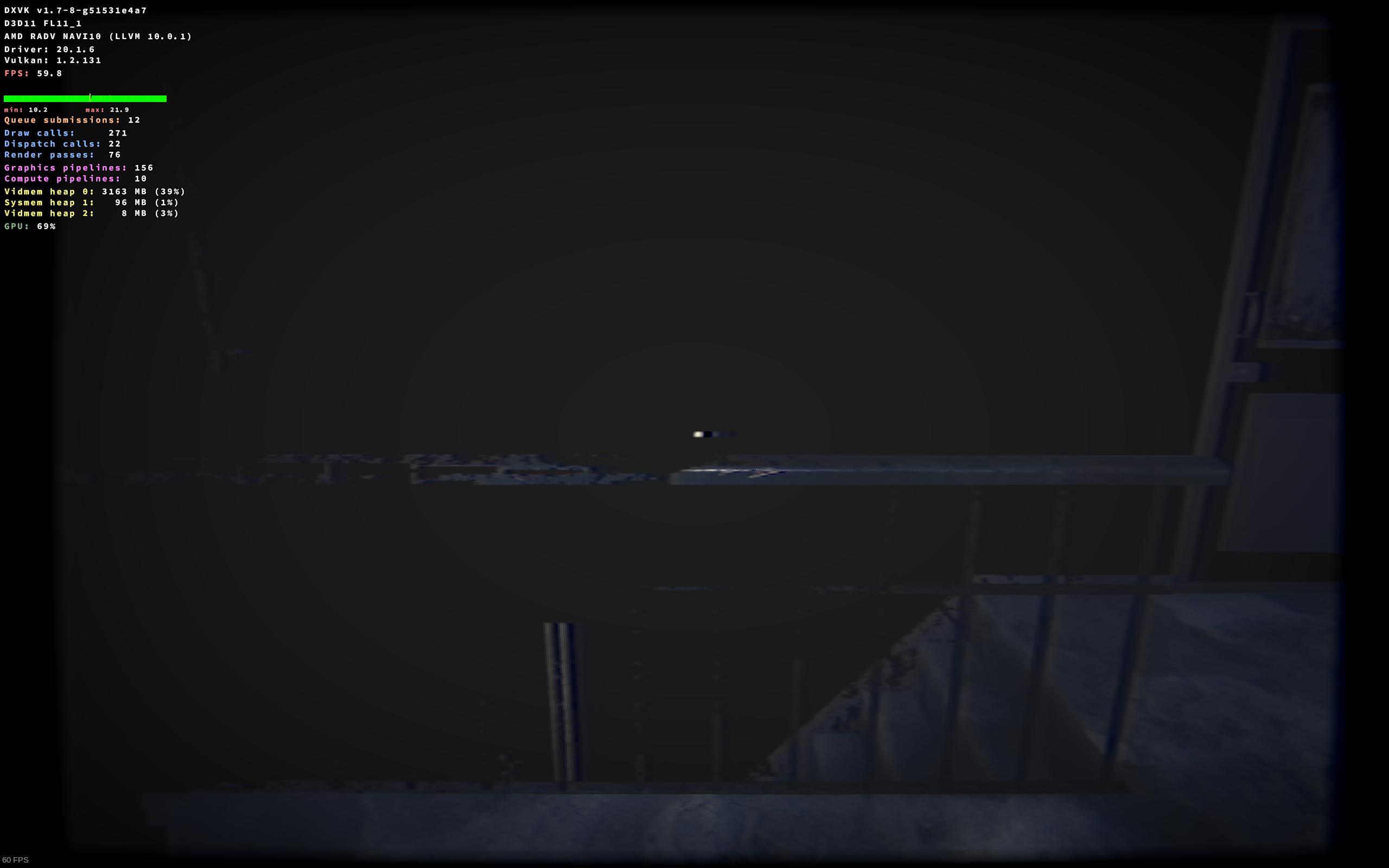

Steps to re-produce issue in The Convenience Store:

  • Enable SSR in games options
  • At the very beginning pick up the flashlight, stand beside the table where you picked it up. Use the flashlight and look down the stairs. This is the spot, it is not supposed to be dark:
    convini

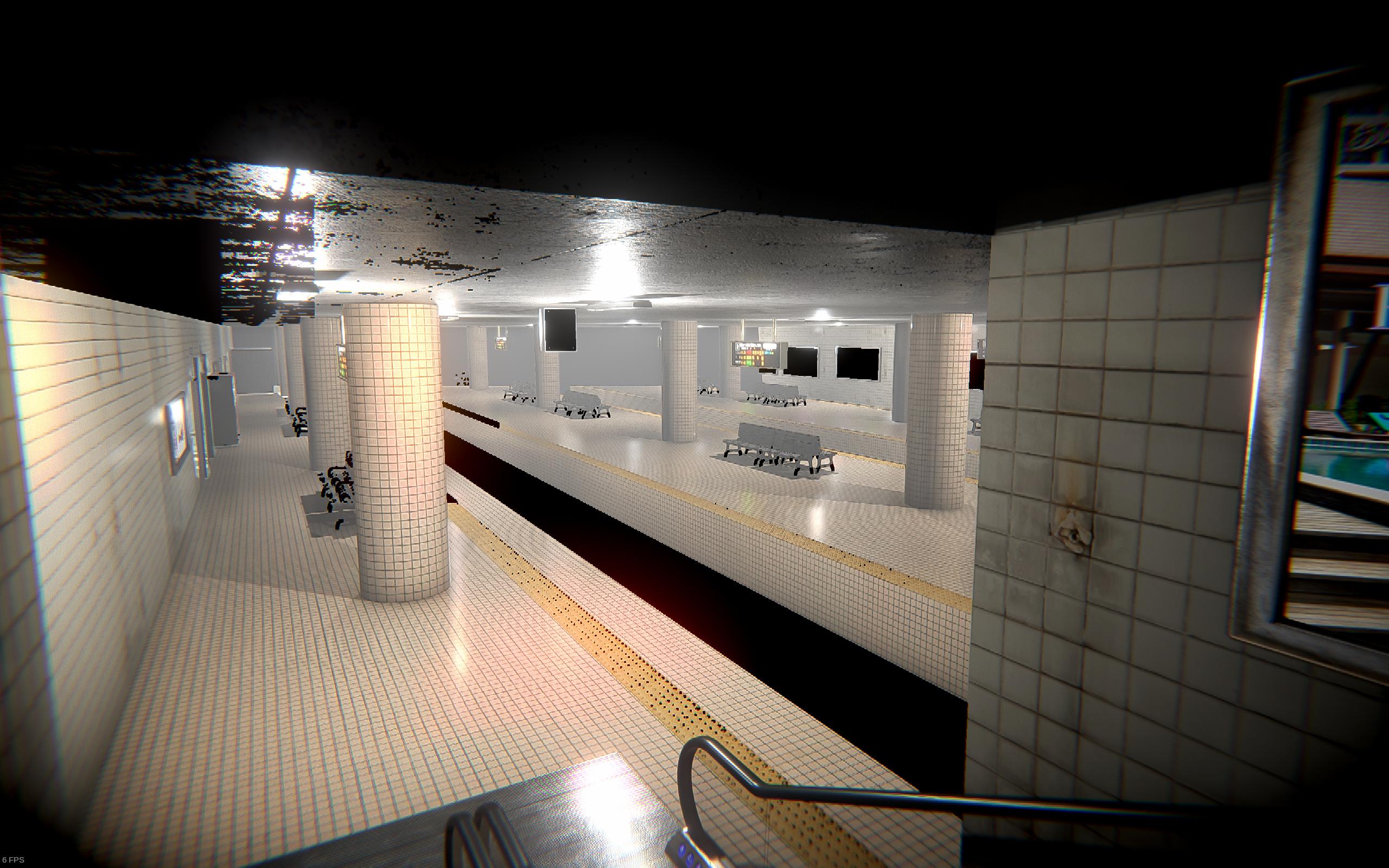

Steps to re-produce issue in The Ghost Train:

  • Enable SSR in games options
  • Right at the very start going down the escalator you will see glitches
    train

It is easiest to see the problem in Ghost Train, as it is right at the beginning and you don't have to stand in a special spot for the problem to occur.

Logs
logs.zip
system_info.txt

Kkisak-valve maintainer 2020-09-02 github

Hello @AwesamLinux, it may be worthwhile to also mention this to the mesa/radv devs.

Hhakzsam 2020-09-23 github

I can also reproduce the issue with Ghost Train with AMDVLK, so it's probably not RADV specific.

Hhakzsam 2020-09-23 github

@AwesamLinux It appears that setting d3d11.enableRtOutputNanFixup = True inside dxvk.conf fix the issue on my side. Can you confirm?

AAwesamLinux 2020-09-23 github

@hakzsam Thanks, I tried it on all of these and it worked!

Missing Children (1306620)
The Convenience Store (1228520)
The Ghost Train (1349960)

Including the dxvk logs here in case the games executable names would be useful:
Missing Children_d3d11.log
The Convenience Store Yakin Jiken_d3d11.log
TheGhostTrain_d3d11.log

AAwesamLinux 2020-10-19 github

Confirming that as of Proton 5.13-1 these games are rendering properly.
