[BUG] AMD Radeon RX 7900 XTX - Unable To Drive Valve Index At 144Hz

steamvrclosed bug
ValveSoftware/SteamVR-for-Linux#552 · opened 2022-12-22 by gekret005 · updated 2023-07-07 · 15 comments · github
Ggekret005 2022-12-22 github

Describe the bug
In SteamVR when the Valve Index is set to 144Hz it will proceed to fail. Setting it to 80, 90, and 120 all seem to work fine. The same occurs under Windows 10 and 11.

To Reproduce
Set Valve Index to 144hz
Expected behavior
Valve Index Runs at 144Hz

System Information:

Related Issues
Also posted at https://gitlab.freedesktop.org/drm/amd/-/issues/2310
https://steamcommunity.com/app/250820/discussions/3/3723945543093550005/

DDanielduel 2023-02-01 github

Same issue,
happens only with vulkan-radeon, using amdvlk doesn't crash (although I can't tell if the output is full 144Hz).
https://github.com/ValveSoftware/SteamVR-for-Linux/issues/532 seems like the same issue.

Differences:
latest Arch with X11 gnome
steamvr beta 1.25.3
steam build Dec 15 2022
5950X cpu

(EDIT: it is out of scope)

you have very close stack to mine, do you get artifacts on the "border" of right eye (and artifacted 2d surfaces in steamvr overlays (but not in 3d scenes))?
(it happens regardless if I use amdvlk or vulkan-radeon)

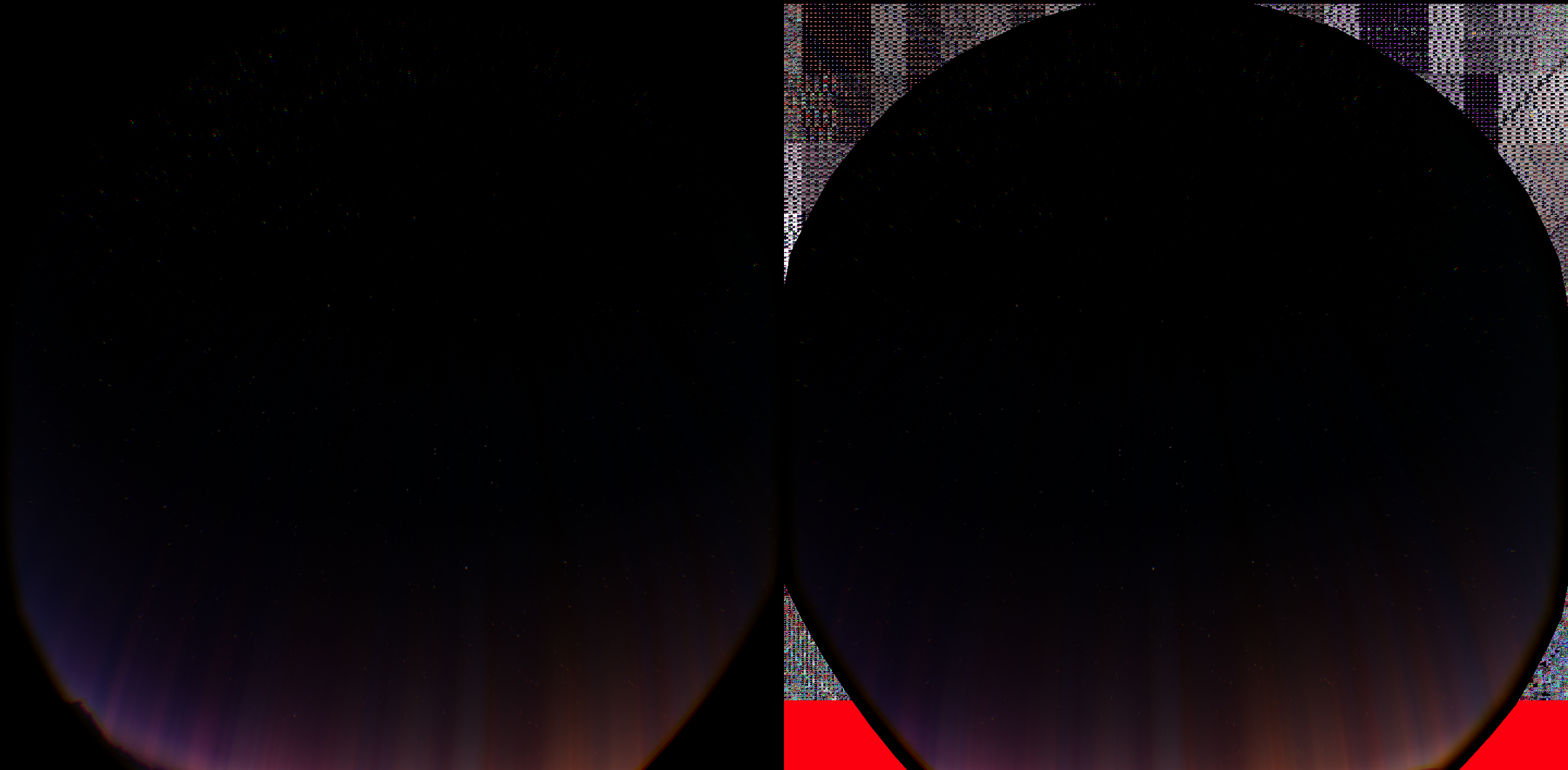

Screenshot from 2023-01-31 22-13-02
The artifacting is random, usually it is pure white with random distorted gpu memory trash(?).
In the headset the artifact is visible only if your eye is very close to the lens, but since it is very bright white - it is a bit unpleasant to play.

~~Maybe worth noting - I use vulkan-radeon and amdvlk from repository extra and lib32 variants of them from multilib.
https://archlinux.org/packages/extra/x86_64/vulkan-radeon/
https://archlinux.org/packages/multilib/x86_64/lib32-vulkan-radeon/~~

Kkisak-valve maintainer 2023-02-01 github

Hello @Danielduel, please give #480 a read.

DDanielduel 2023-02-01 github

Hello @Danielduel, please give #480 a read.

Wow, I didn't knew how to look for that issue, thank you a ton <3

DDefense-Matrix 2023-02-21 github

I also have this problem with my 7900xtx. The 144hz one

Kkzdixon 2023-02-22 github

If you want to get the fix early, this kernel branch tag has it fixed: https://gitlab.freedesktop.org/agd5f/linux/-/tags/amd-drm-next-6.3-2023-02-17
The fix does not seem to be merged in as of kernel 6.2.

ZZarathustraDK 2023-03-16 github

Just chiming in with the same experience. Upgraded from a 6800XT that had the 144Hz option to a 7900 XTX that seems to be lacking it.

Kkzdixon 2023-03-16 github

I'm guessing it should be merged in when we get 6.3.

MMeister1593 2023-03-20 github

Had this issue with vive randomly not getting into direct mode for a while
Just tested 6.3 kernel on fedora silverblue (see here how to do it https://coreos.github.io/rpm-ostree/ex-replace) on arch container with steam and it worked perfectly, vive now can be detected every time

1143mailliw 2023-04-24 github

On my 7900XT I can't even select any refresh rate. It just says "Additional refresh rates are supported by your HMD, but were not detected by the graphics driver.". Running mesa-git and the amd-drm-next tree.

EDIT: This stopped happening after unplugging the headset and reconnecting it.

Kkzdixon 2023-05-25 github

Fix has been merged as of kernel 6.3+.

BBillGR17 2023-05-30 github

Yeah, it works for me too now

DDanielduel 2023-05-30 github

(after updating local packages (including kernel, mesa, DE, ...)) Headset doesn't crash anymore in 144Hz mode, will check if it's stable today.

DDanielduel 2023-05-31 github

Seems stable, 3h of (proton) Beat Saber on 144Hz index ran without any problems, the difference to 120Hz is hard to spot, but I would argue it correctly pushed frames.

DDanielduel 2023-06-01 github

Another 2h session - everything was fine.
@kisak-valve I think this can be marked as fixed.

Kkisak-valve maintainer 2023-07-07 github

Closing per the last several comments.
