[D3D9] Red Orchestra 2

dxvkclosed bugd3d9
doitsujin/dxvk#2016 · opened 2021-04-07 by ByCybernetik · updated 2021-12-05 · 2 comments · github
BByCybernetik 2021-04-07 github

When loading some maps nothing is displayed except the HUD.
DXVK
20210407125156_1

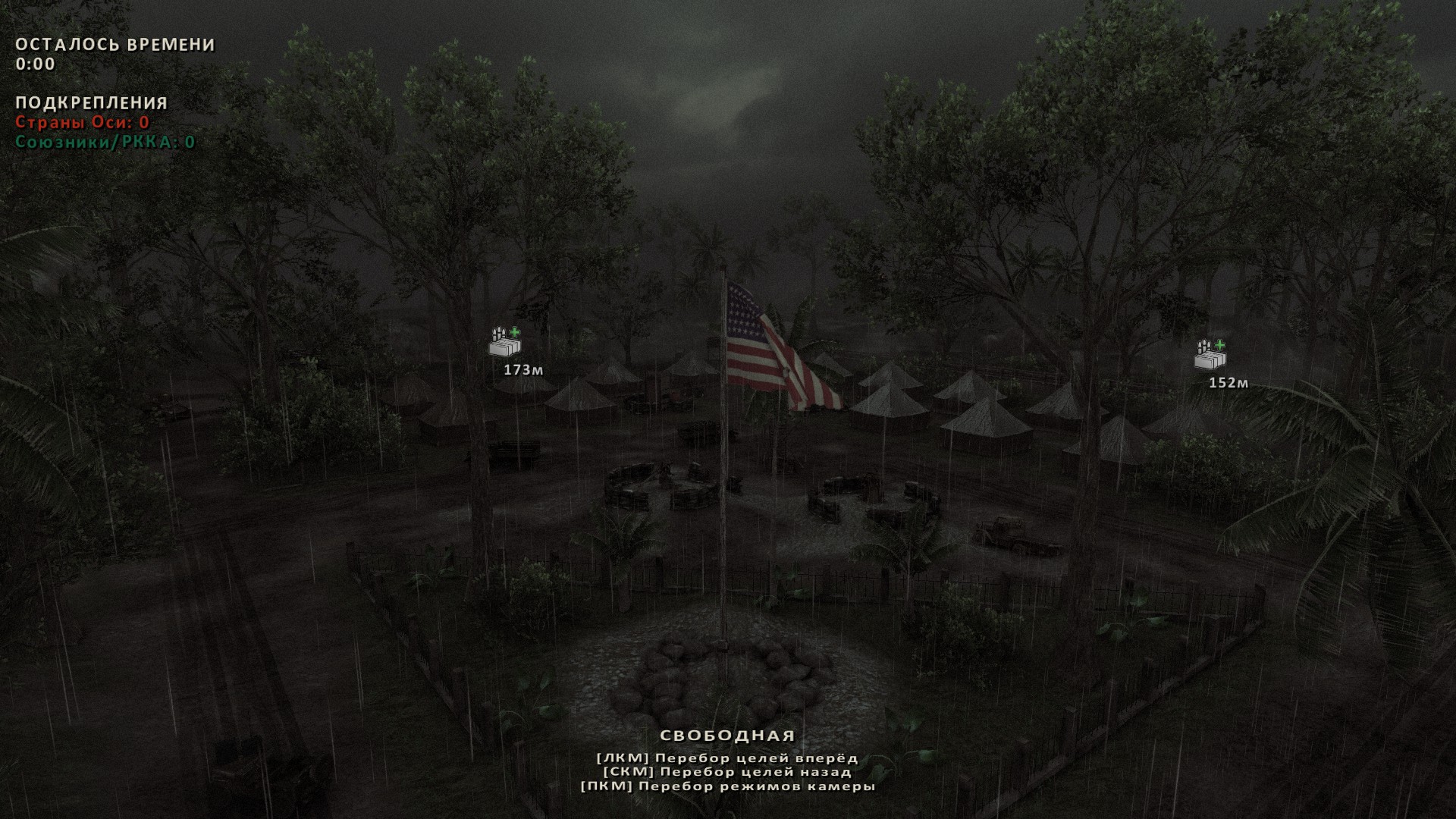

D3D9 Native
20210407001929_1

Software information

Red Orchestra 2: Heroes of Stalingrad with Rising Storm, ultra settings.

System information

  • GPU: Radeon RX 590
  • Driver: RADV
  • Wine version: Proton 6.3-1
  • DXVK version: Master

Apitrace file(s)

Log files

KK0bin maintainer 2021-04-30 github

This comment is meant to document my findings, Joshua told me he'll do the rest.

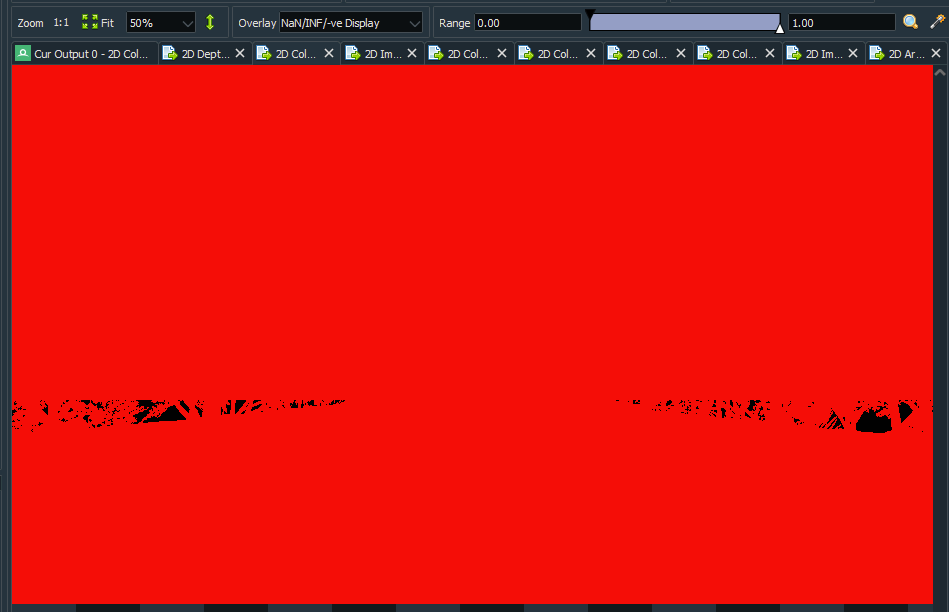

The game sets a float constant to infinity, which most likely causes issues with D3D9s funky floating point rules. The infinity is then multiplied with a value that's 0, which causes it to become NaN. Apparently D3D9 expects anything * 0 = 0.

9343501 @1 IDirect3DDevice9::SetPixelShaderConstantF(this = 0xc8e95a0, StartRegister = 0, pConstantData = [-inf, -0.000144277, 0, 0], Vector4fCount = 1) = D3D_OK

KK0bin maintainer 2021-12-05 github

Should be fixed by c13395db970d16a5631a7c0926e2c4529d2710c3
