I was successfully running both dx9 and dx11 gw2 with dxvk..
A. Did u ensure dx9 version works locally? (so you know vulkan is setup correctly)
B. Did u also copy dxgi.dll?
C. For Dx9 dlls need to be in gw2/bin64, for dx11 it should be in gw2/

Btw ive found out that as for now, dx9 dxvk version runs the best (out of dx9, dx11, and dx11vk), dx11vk one gives me around 10 less fps and Abit more stuttering, i hope that anet will improve dx11 in the future and it will run better xD

Is there any way to prevent it from loading dxgi.dll from system32?

Delete the dxvk version of the d3d9 file from the bin64 folder in order to use dxvk with d3d11 and dxgi in the games main folder.

DXVK's D3D9 file in /bin64/ prevents GW2 from loading the D3D11 and DXGI files from the root directory when the game is configured to D3D11, the game by default loads the D3D9.dll at launcher start preventing the started game from seeing the DXVK d3d11 and dxgi files (this is before logging in and starting the game).

When you do login and start game after having set D3D11 to enabled, you see this

When you do not have the d3d9 file in /bin64/, the system version of the library is loaded instead(obviously) and guildwars 2 is able to load the d3d11 and dxgi files from dxvk placed in the root directory of GW2

It is the first i've seen any title have different load location requirements depending on the D3D api used, where the same executable is used for both.

My theory would be that the dxvk library under /bin64/ changes the start in location, which in that case the d3d11 and dxgi dll's should work from the /bin64/ folder too, but they don't.

¯_(ツ)_/¯

@Squall-Leonhart How did you get this to work?

I'm getting this same problem as OP and I've tried deleting all dxgi/d3d9/d3d11 files from both the root folder and /bin64/, starting from scratch with dxvk today. Using the resource monitor, it always seems to be associated with d3d9 and dxgi from /System32/, even when the game is set to use DX11, and I've put dxvk's d3d11 & dxgi dll's into GW2's root directory. If I put dxvk's d3d9 into /bin64/ it will use that and vulkan will load, but I'll be on d3d9->vk 😩

I really want to use d3d11->vk because dx11 performace has really come a long way in GW2 and I'm hoping that will translate into vulkan and push it even higher.

dxvk's d3d11 and dxgi go into the same folder as gw2-64.exe, nothing goes into bin64.

Yeah I am doing that, I just tested out the dx9 version of vk in order to verify that at least that would work. It does, but dx11 doesn't.

Interestingly if I install the dx11 version of reshade, that works, and resouce monitor says it's using the dxgi in the gw2 root folder.

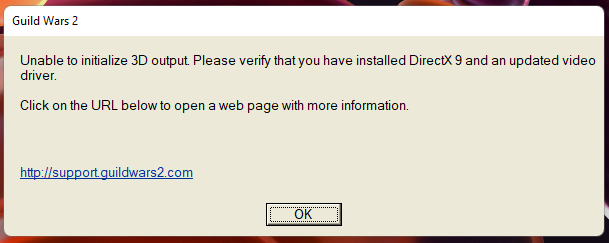

Trying dxgi from dxvk just causes the same crash as shown by OP:

I wondered if it was something on my PC, I uninstalled a couple of overlay programs that were showing up, and also deleted everything in the GW2 folder. But no luck. Could it be that my GW2 is not installed in /Program Files/?

you need both the dxgi and the d3d11 file.

Yep got that as well.

Here's my GW2 root folder:

And my /bin64/

And I'm getting that error when I try to load up the DX11 mode of GW2

it could be due to being blocked on the file properties.

It just doesn’t work as said it should it errors out I’ve tried everything also and nothing works but my performance is amazing with dx11 now Sent from my iPhoneOn Aug 29, 2022, at 6:30 PM, Squall Leonhart @.***> wrote:
it could be due to being blocked on the file properties.

—Reply to this email directly, view it on GitHub, or unsubscribe.You are receiving this because you authored the thread.Message ID: @.***>

more than likely this https://reverseengineering.stackexchange.com/questions/29872/program-doesnt-load-a-custom-dll-from-main-directory-how-can-i-inject-a-dll

Thanks for that. Lots of info there. I'm not in a position to create a launcher, (GW2 has one anyway, so not sure if that would work), but I did try some of the DLL redirect stuff out. No beans.

The fact that GW2 will load Reshade's dxgi suggests it's capable of loading custom dll's. I'm wondering if it's specifically the d3d11 that it won't load or doesn't like for some reason.

@Squall-Leonhart are you able to get yours to load on the latest GW2 and dxvk? Just want to make sure they haven't introduced a hard-coded path to d3d11 in a later version of GW2.

This issue is still occurring for me, and the SelectRenderer workaround doesn't seem to fix it anymore. Specifically, DX11 will fail to initialize the 3D renderer, and will fall back to the DX9 renderer, which works.

CoherentUI will be replaced in the game sometime here in Q1. Might make things easier then.

This is on Windows. Here are the logs:
Gw2-64_d3d11.log
Gw2-64_d3d9.log

under windows 10 you need to mess with knowndll's a bit to get dxvk loaded by guildwars 2.

under windows 10 you need to mess with knowndll's a bit to get dxvk loaded by guildwars 2.

Any links, suggestions, or tips on how to go about doing that? I tried searching but I haven't seen much discussion of working with KnownDLLs in regards to DXVK or Guild Wars 2

For what it's worth, all of the devices I have access to and have tested on have been either Nvidia or Intel integrated graphics. I'll have an AMD device available in a few weeks and can see if that makes any difference.

The newest update makes the game use CEF (Chromium Embedded Framework) instead of CoherentUI by default so this might work better now if it is of interest.

Edit: nvm they reverted it again
