Fallout 3 requires PCI Override to launch on Intel Arc

dxvkclosed

doitsujin/dxvk#3029 · opened 2022-11-04 by Evernow · updated 2023-01-30 · 24 comments · github

EEvernow 2022-11-04 github

Explanation

If one launches Fallout 3 on at least my Arc A770 the game crashes shortly after trying to load a save. However if I set the following options in dxvk.conf the game loads correctly.

dxgi.customDeviceId = 2205
dxgi.customVendorId = 10DE

d3d9.customDeviceId = 2205
d3d9.customVendorId = 10DE

dxgi.customDeviceDesc = "NVIDIA RTX 3080"
d3d9.customDeviceDesc = "NVIDIA RTX 3080"

I have not tested if all of them are necessary, and can do that if desired.

Software information

Fallout 3: Game of the Year Edition, likely the normal version also suffers from this but I have not tested it.

System information

GPU: Intel Arc A770
Driver: 22.4.0-devel
Wine version: Proton Experimental
DXVK version: v1.10.1

Apitrace file(s)

I do not believe this is relevant as this does not reproduce the issue, this API trace is captured on an RTX 3080 on Windows.

https://drive.google.com/file/d/1H8oFvE4t8mm1Mt1wEnnrhCg56k6T_K27/view?usp=sharing

Log files

Without the PCI Override options (resulting in crash as explained above):

Fallout3_d3d9.log
FalloutLauncherSteam_d3d9.log

With the aforementioned PCI Override options:
Fallout3_d3d9.log
FalloutLauncherSteam_d3d9.log

BBlisto91 2022-11-04 github

These do not seem to be created unfortunately.

Did you launch with PROTON_LOG=1 %command% ? Proton disables dxvk logging by default

EEvernow 2022-11-04 github

These do not seem to be created unfortunately.

Did you launch with PROTON_LOG=1 %command% ? Proton disables dxvk logging by default

Thank you, edited the original post with the logs for both scenarios

BBlisto91 2022-11-04 github

Does it crash during the loading screen or do you reach ingame?

EEvernow 2022-11-04 github

Does it crash during the loading screen or do you reach ingame?

I get to the main menu and then when I try to load a save game it crashes on the loading screen.

BBlisto91 2022-11-04 github

Thanks for the report.
I'm amazed this haven't been brought up before here as this just seems to be Intel in general.

Aaufkrawall 2022-11-05 github

Should apply to Oblivion too.

EEvernow 2022-11-05 github

Should apply to Oblivion too.

I at least cannot reproduce it on my A770, seems to load in fine

Aashnair5335 2023-01-29 github

Hey guys, I have the same problem but I can't seem to find the dxvk.conf file. Where is this located?

EEvernow 2023-01-29 github

Hey guys, I have the same problem but I can't seem to find the dxvk.conf file. Where is this located?

You create it yourself in the game's executable location.

BBlisto91 2023-01-29 github

@ashnair5335 What Evernow ninjaed above :grin:
Tho note sometimes it's not directly next to the executable. Usually where the dxvk logs appear if that is a different location

What game do you have this issue with?

Aashnair5335 2023-01-29 github

I have the issue with the same game, Fallout 3 GOTY. I searched the folder where the executable is located, and there are no files with "dxvk" in its names. If I need to create it, could you please provide instructions on how?

Aashnair5335 2023-01-29 github

Also, Evernow, you have an Intel Arc, but you put "NVIDIA RTX 3080" in the dxvk.conf file as the custom device description. Why is this? Or did I understand something wrong?

BBlisto91 2023-01-29 github

The workaround for this issue is already built in to dxvk 2.0 and 2.1 so there should be no need for a config file

Aashnair5335 2023-01-29 github

Is there a way to check which dxvk I have? Also, I don't know if this makes any difference, but I am launching from the epic games launcher, and I have an Intel Arc 370M discrete graphics card.

BBlisto91 2023-01-29 github

If you have put the dxvk 32bit d3d9.dll next to the games exe a log called "Fallout3_d3d9.log" should appear either next to the exe or in the games root folder. The version should be at the top of the log when viewed in a text editor.

EEvernow 2023-01-29 github

Also, Evernow, you have an Intel Arc, but you put "NVIDIA RTX 3080"

This was not needed, it was just added initially since I did not narrow down which of the options the game worked with.

The only option needed is d3d9.customVendorId = 10de

Aashnair5335 2023-01-29 github

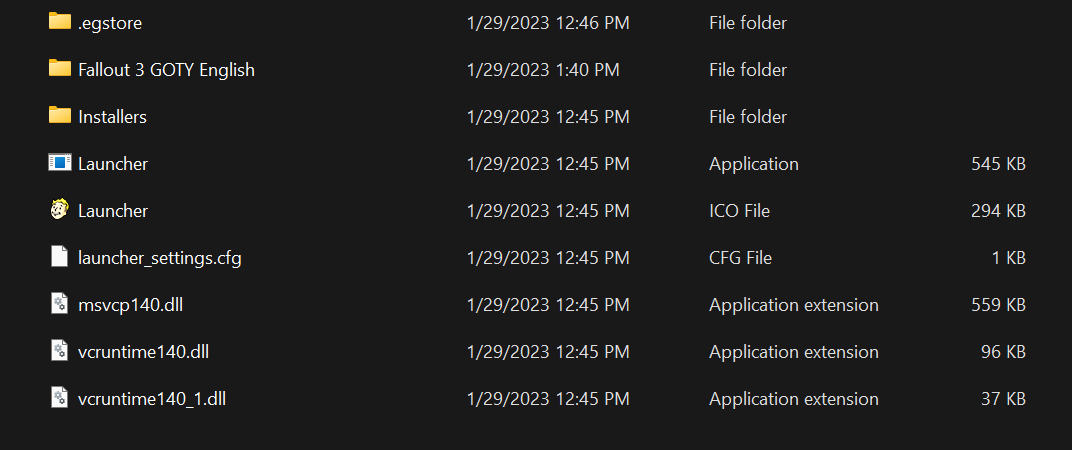

The thing is, I don't understand where the correct executable is. There are multiple folders for the epic games launcher, and multiple exe's for Fallout. Where would I add them? This is one folder (C:/Program Files/Epic Games/fallout3), and the Launcher.exe is the Fallout game (still crashes on this though):

This is what is in the "Fallout 3 GOTY English" folder in the folder above (FalloutLauncherEpic.exe goes to the Fallout Launcher, Fallout3.exe goes straight to the game, and neither of them work):

Where am I supposed to make the dxvk.conf? And where is the d3d9.dll file?

BBlisto91 2023-01-29 github

You put the d3d9.dll file there yourself if you use dxvk provided from here. If you don't know what dxvk is then it's a Direct3D to Vulkan translation layer created to be used to play Windows games on Linux. Intel uses a fork of it for specific games in their Arc drivers on Windows, but i don't know the details of that or which games they use it for besides CS:GO.
You can downloaded latest version here https://github.com/doitsujin/dxvk/releases/tag/v2.1. The asset called dxvk-2.1.tar.gz is the one you want and can be opened with a archive tool like 7zip. From the x32 folder put the d3d9.dll next to the executable called Fallout3

For the config file, which shouldn't be necessary in this case, it's just a file you create yourself called dxvk.conf and edit in a text editor notepad or similar.

Aashnair5335 2023-01-29 github

Okay, I will try this and get back to you guys. Thanks for being so helpful!

Aashnair5335 2023-01-30 github

Okay, I tried putting d3d9.dll in the folder. The game launches but before the title screen is visible, the game crashes. But two files, Fallout3_d3d9 and FalloutLauncherEpic_d3d9, are generated as .txt files with a bunch of lines that seem to be config options. Thoughts?

KK0bin maintainer 2023-01-30 github

Those 2 files are log files.

BBlisto91 2023-01-30 github

Post them here

Aashnair5335 2023-01-30 github

Fallout3_d3d9.log
FalloutLauncherEpic_d3d9.log
These are the two files.

BBlisto91 2023-01-30 github

Nothing sticks out.
Have you made sure your graphics drivers are up to date?

Also you could try with dxvk 2.0 instead https://github.com/doitsujin/dxvk/releases/tag/v2.0
