The Witcher 3: funny transparent models

dxvkclosed feature set
doitsujin/dxvk#75 · opened 2018-02-14 by pchome · updated 2018-02-22 · 9 comments · github
1 matching comments, n / p to jump
Ppchome 2018-02-14 github

Game requires shader fix trick all over the time when new buggy shaders upcoming. Now I did dozen rounds and it keep crashing when I moving around.

Software information

The Witcher 3: Wild Hunt

  • Vulkan build: patch from wine-staging-2.21
  • DXVK build: native Linux x86_64

System information

  • GPU: GeForce GTX 750 Ti
  • Driver: 387.34
  • Wine version: current master
  • DXVK version: current master

Apitrace file(s)

N/A

Log files

tl;dr:

warn:  DxbcCompiler: Unhandled opcode class: DxbcOpcode::BfRev

debug: Compiling shader HS_64dcca9ce8bd967f0d131a0a82ced30acc9901b0
err:   DxbcCompiler: Unsupported program type
debug: Compiling shader DS_e83da891f3031a593e70372c864c7bf9970d9c19
err:   DxbcCompiler: Unsupported program type

err:   D3D11: Invalid blend factor: -256412760
err:   D3D11: Invalid blend op: 2118799696
...

debug: D3D11Device: No such vertex shader semantic: POSITION0
debug: D3D11Device: No such vertex shader semantic: COLOR0
debug: D3D11Device: No such vertex shader semantic: TEXCOORD0

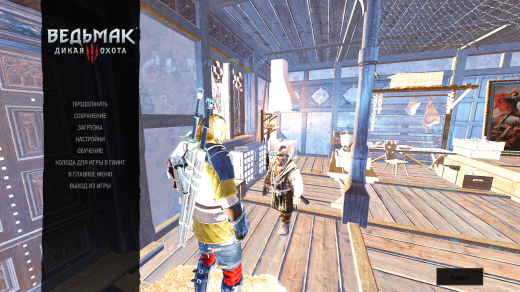

dxvk-tw3-bugs-small

Vvolca02 2018-02-16 github

As of fd1fd40ad6f6fb01e9d37611215aca5496d79c1f, the game no longer crashes upon start (yay!), but it seems to freeze before reaching the main menu. CPU load is pretty low. This is without the shader fix trick mentioned by OP.

witcher3_dxgi.log
witcher3_d3d11.log

Ddoitsujin maintainer 2018-02-16 github

@volca02 what's your hardware / driver? I've seen the same behaviour on RADV in mesa-git, not sure what causes it though.

As for the game not rendering correctly, that is to be expected.

Vvolca02 2018-02-16 github

Oh sorry, should've mentioned that. I have GTX 1080 with driver version 390.25-10 on arch with 4.15.1-2-ARCH kernel.

Edit: Update. Apparently the game writes a crash log before freezing, so there still is some unwanted behavior that causes crashes.

witcher3.exe_crash_20180115_122116073.crashinfo.log

Edit: With DXVK_DEBUG_LAYERS=1 (and an appropriate vk_layer_settings.txt), the crash log is not produced, the game still freezes on black screen (before getting into main menu), and this vulkan log is produced:

vulkanlog.txt

Ppchome 2018-02-16 github

I finally got bored with fixing shaders by hand and now I have new game called "Collect full Geralt". No crashes for 5 min. ingame with this hack:

diff --git a/src/d3d11/d3d11_shader.cpp b/src/d3d11/d3d11_shader.cpp
index fa91c27..44086b4 100644
--- a/src/d3d11/d3d11_shader.cpp
+++ b/src/d3d11/d3d11_shader.cpp
@@ -1,12 +1,61 @@
 #include "d3d11_device.h"
 #include "d3d11_shader.h"

+#include "spirv-tools/optimizer.hpp"
+
 namespace dxvk {
-
+  spvtools::Optimizer spirv_opt(SPV_ENV_VULKAN_1_0);
+
   D3D11ShaderModule:: D3D11ShaderModule() { }
   D3D11ShaderModule::~D3D11ShaderModule() { }

-
+  template <typename T>
+  bool ReadSpvFile(const char* filename, const char* mode, std::vector<T>* data) {
+    const int buf_size = 1024;
+    const bool use_file = filename && strcmp("-", filename);
+    if (FILE* fp = (use_file ? fopen(filename, mode) : stdin)) {
+      T buf[buf_size];
+      while (size_t len = fread(buf, sizeof(T), buf_size, fp)) {
+        data->insert(data->end(), buf, buf + len);
+      }
+      if (ftell(fp) == -1L) {
+        if (ferror(fp)) {
+          fprintf(stderr, "error: error reading file '%s'\n", filename);
+          return false;
+        }
+      } else {
+        if (sizeof(T) != 1 && (ftell(fp) % sizeof(T))) {
+          fprintf(stderr, "error: corrupted word found in file '%s'\n", filename);
+          return false;
+        }
+      }
+      if (use_file) fclose(fp);
+    } else {
+      fprintf(stderr, "error: file does not exist '%s'\n", filename);
+      return false;
+    }
+    return true;
+  }
+
+  template <typename T>
+  bool WriteFile(const char* filename, const char* mode, const T* data,
+                 size_t count) {
+    const bool use_stdout =
+        !filename || (filename[0] == '-' && filename[1] == '\0');
+    if (FILE* fp = (use_stdout ? stdout : fopen(filename, mode))) {
+      size_t written = fwrite(data, sizeof(T), count, fp);
+      if (count != written) {
+        fprintf(stderr, "error: could not write to file '%s'\n", filename);
+        return false;
+      }
+      if (!use_stdout) fclose(fp);
+    } else {
+      fprintf(stderr, "error: could not open file '%s'\n", filename);
+      return false;
+    }
+    return true;
+  }
+
   D3D11ShaderModule::D3D11ShaderModule(
     const DxbcOptions*  pDxbcOptions,
           D3D11Device*  pDevice,
@@ -48,6 +97,24 @@ namespace dxvk {
         std::ios_base::binary | std::ios_base::trunc));
     }

+
+    spirv_opt.RegisterLegalizationPasses();
+
+    std::vector<uint32_t> spirv_dump_data;
+    std::vector<uint32_t> spirv_fixed_data;
+
+    if (ReadSpvFile<uint32_t>(str::format("./", dumpPath, "/", m_name, ".spv").c_str(), "rb", &spirv_dump_data)) {
+      if (!spirv_opt.Run(spirv_dump_data.data(), spirv_dump_data.size(), &spirv_fixed_data)) {
+        Logger::err(str::format("Shader NOT optimized ", m_name));
+      } else {
+        if (!WriteFile<uint32_t>(str::format("./", readPath, "/", m_name, ".spv").c_str(), "wb",
+          spirv_fixed_data.data(), spirv_fixed_data.size())) {
+          Logger::err(str::format("File not saved ", str::format("./", readPath, "/", m_name, ".spv")));
+        }
+      }
+    } else {
+      Logger::err(str::format("File not found ", str::format("./", dumpPath, "/", m_name, ".spv")));
+    }
     // If requested by the user, replace
     // the shader with another file.
     if (readPath.size() != 0) {
@@ -56,8 +123,10 @@ namespace dxvk {
         str::format(readPath, "/", m_name, ".spv"),
         std::ios_base::binary);

-      if (readStream)
+      if (readStream) {
         m_shader->read(std::move(readStream));
+        Logger::trace(str::format("Shader overrided ", m_name));
+      }
     }
   }


ReadFile and WriteFile are stolen from spirv-tools io.h

Some transparent textures became visible and normal when I moving around now.

Ppchome 2018-02-16 github

On High settings it looks more accurate, but crashed as soon as GPU memory became full (maybe this is partially Nvidia fault: https://devtalk.nvidia.com/default/topic/1026874/).

terminate called after throwing an instance of 'dxvk::DxvkError'
fixme:seh:dwarf_get_ptr unsupported encoding 9b
...

TW3 bugs on High

Ppchome 2018-02-17 github

I noticed some shaders compiled more than once. Is it ok?
Here is top >2:

     89 debug: Compiling shader VS_ce8f5bfde13924bc08ecbbb615a50f7b72dce93e
     29 debug: Compiling shader VS_29d1353d7dec12eef804bd0825ebf18e7851da81
     12 debug: Compiling shader PS_f8ca366fc398385db2bf00f63e3807aa0f10b55e
     12 debug: Compiling shader PS_f7700f2339e74aace080d67a43afaede969bd637
     12 debug: Compiling shader GS_4bf0ed14ba0c96bb2ee0b03d40fcf760c73718d6
     10 debug: Compiling shader VS_259b1bf0449c05edb75a2f71c2c54e1bb9668e05
      8 debug: Compiling shader VS_aef33f45ccc7a7ce3b8f7b3d708e55eb0f6432e3
      8 debug: Compiling shader VS_7de085928768c966ad3d58aa9ebef1e0f767bb16
      8 debug: Compiling shader VS_17ec1cc54841f3bf05e9a8b7b420f3d31f4c43d6
      8 debug: Compiling shader VS_0d3f59fbd84cdd255dd90c08a5e380985268df22
      7 debug: Compiling shader VS_dc76e9bfb157d62019f68a7e60e8a4fb762b57cb
      6 debug: Compiling shader VS_e0298fd8c1874484d015533d278afcae59ed6966
      6 debug: Compiling shader VS_dcfa269ad23df71449ce60a92afbd5761acd7651
      6 debug: Compiling shader VS_3b2a0d08e83c69e24265634974803e6faee08d93
      6 debug: Compiling shader PS_a1fbfe2404867231a4d49c53bb1bd204d49dbf8f
      5 debug: Compiling shader VS_5b089da49390f0d75d1aa3f62452646f4a63452b
      5 debug: Compiling shader VS_3b626a33c637292c60d0b1fe4311a3268d93bd9e
      5 debug: Compiling shader VS_0eece8010698c11d97fb3f96c0aecea76f169000
      4 debug: Compiling shader VS_8eea0a1f89dacfa50ef4b0d08e2031c8524ac481
      4 debug: Compiling shader VS_41f1ce2ee3c93a4062202ed30bbebd3e3f9455c5
      4 debug: Compiling shader VS_356502ef0ecaa1649ca24270b8137dcdad9525dc
      4 debug: Compiling shader PS_ec0fa763dddc20ab2beb51510793acec63408de8
      4 debug: Compiling shader PS_6b07f097b1a9eb9052d95d4adb84b2731dea0701
      3 debug: Compiling shader VS_f034cf3f0d7abc3ced3db241e492ebd1e3652838
      3 debug: Compiling shader VS_a9571bada622417601d856047fe71d302461e463
      3 debug: Compiling shader VS_8b1390e50032f5455a581586db5925bd6d505d4d
      3 debug: Compiling shader VS_3a88e0ce4f8f7d3a5bd2a2e9fdbc523040692569
      3 debug: Compiling shader GS_29373985276080f759d812e6a9d5cb0f31e5f054

twice: 55
once: 357

It's on launch and before fail with disabled shader read dir. Max. saved shaders count I noticed after some time in game was >1k .

Sshmerl 2018-02-19 github

Is there a point in fixing shaders for invisible surfaces, without adding tesselation support first?

Vvolca02 2018-02-20 github

I think this is related to #93

Ppchome 2018-02-22 github

I think this is related to #93

Yes.

This ghost reverted scene caused by AO enabled when saved game was loaded. Re-enabling or disabling SSAO or HBAO+ fixes this.

Except transparent head, missing ground (like in https://bugs.winehq.org/show_bug.cgi?id=43131), distorted or invisible monsters everything else looks ok.
